Sıcak Satış Kimyasal Kristal cam Elektrikli ısıtma reaktörü

FOB Referans Fiyat:En Yeni Fiyatı Alın
$600,00 - $2.500,00 / Birim | 1 Birim / Birimler (Min. Sipariş)
Model Numarası:
DF-50L
Tedarik Süresi::
Miktar( Birimler) 1 - 2 >2
Tahmini Süre (gün) 10 Pazarlık edilebilir
Kişiselleştirme:
Özel logo (Min. Order: 20 Birimler)
Özel ambalaj (Min. Order: 20 Birimler)

Daha Fazla

Grafik özelleştirme (Min. Order: 20 Birimler) Daha Az
rapor Şüpheli Etkinlik
Genel Bakış
Hızlı Detaylar
Durumda:
Yeni
Otomatik sınıf:
Yarı-otomatik
Tür:
Reaksiyon su ısıtıcısı
Menşe Yeri:
Henan, China
Marka adı:
KRYQCN
Gerilim:
220 V/110 V
Güç (W):
120 W 1/3 DİŞLİ MOTOR
Boyut (L * W * H):
About1120 * 780*76mm
Ağırlık:
About135KG
Sertifikasyon:
CE ISO
Garanti:
1 yıl
Satış sonrası hizmet sağlanan:
Video teknik destek, Online destek
Ürün adı:
50L Ajite cam reaktör
Cam malzeme:
Uzun borosilikat cam GG3.3
Uygulama:
Kimya, sanayi, laboratuvar, eczane
Ses:
50L
Karıştırıcı hızı (rpm):
60-600
Isı su/yağ banyosu gücü:
5000 W
Isıtma yöntemi:
Elektrikli Isıtma
Denetleyici:
Dijital ekran Hız sıcaklık Kontrolü
Alt Deşarj Valfi:
PTFE Sızdırmazlık
Paket:
Ahşap kutu
Tedarik Gücü
Tedarik Gücü:
400 Unit/Units per Month Single Glass Reactor can ship by Air to your door or airport
Paketleme & Kargo
Paketleme Detayları

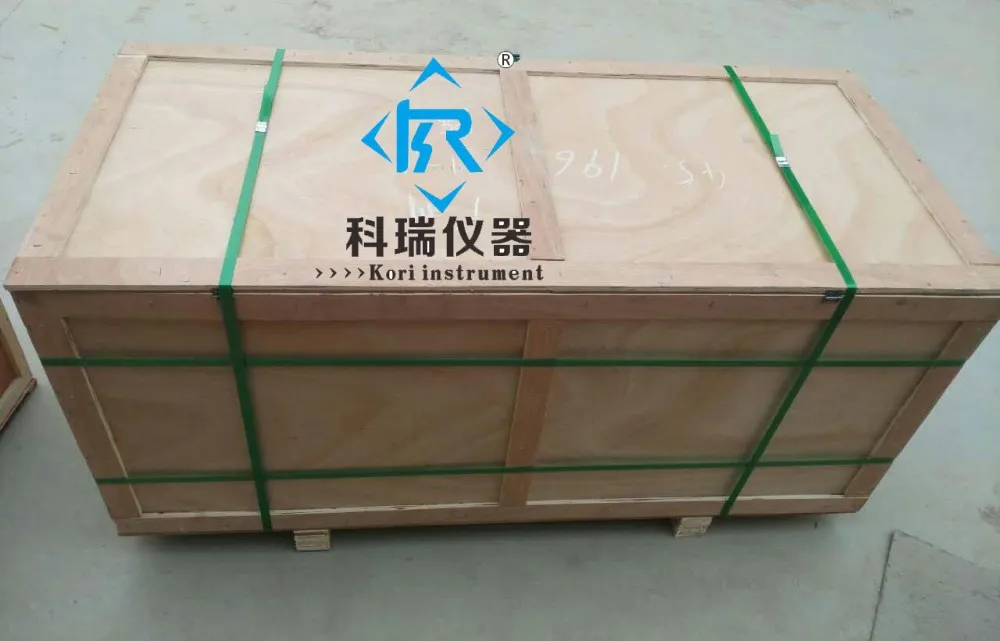

Tek cam reaktör ahşap kutu ile paketlenmiş olacak
Liman
China port
Örnek Resim:
package-img
Tedarik Süresi: :
Miktar( Birimler) 1 - 2 >2
Tahmini Süre (gün) 10 Belirlenecek
Product Description


Xingyang Kori Instrument Factory is manufacturing Glass Reactor with different size at 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L.


10L,20L,30L,50L,100L,150L,200L are optional for Explosion proof .


The single Glass Reactor is a generic term for a type of vessel widely used in the process industries. It is used for a variety of process operations such as dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization. The advantages of the glass reactor lie with its versatility and visibility. Single-layer glass kettle body design, through the water/oil bath or heating jacket to directly heat the kettle body, To make the material react with constant temperature.





Accessory Details

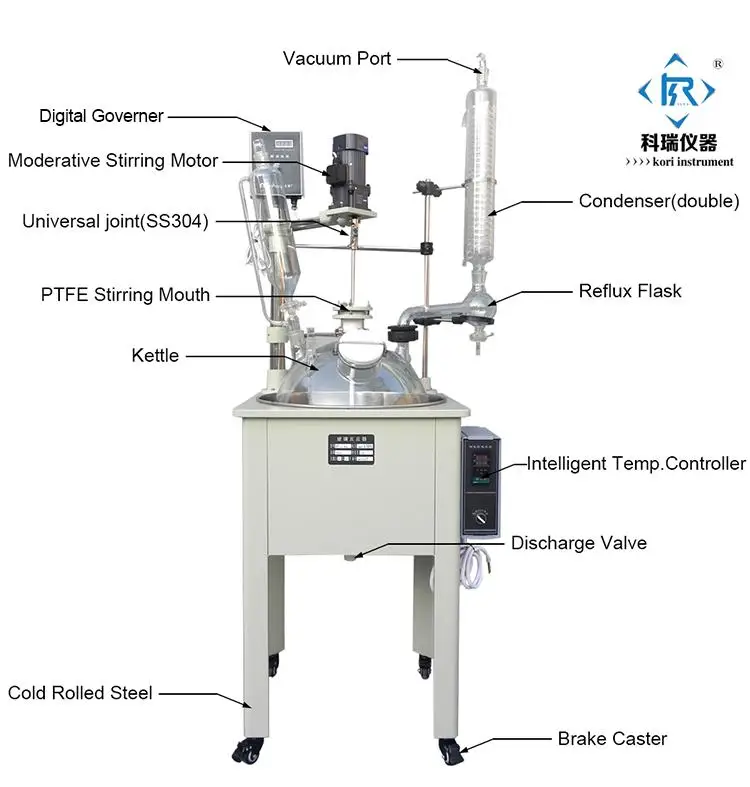

Single Layer Glass has Stainless Steel 304 Water/Oil bath , Condenser, Reflux flask, dropping funnel,thermowell probe, stir agitator and digital display for Temperature & Speed . Besides, it has morden style bottome discharge Valve , digital thermostat Temperature controller .

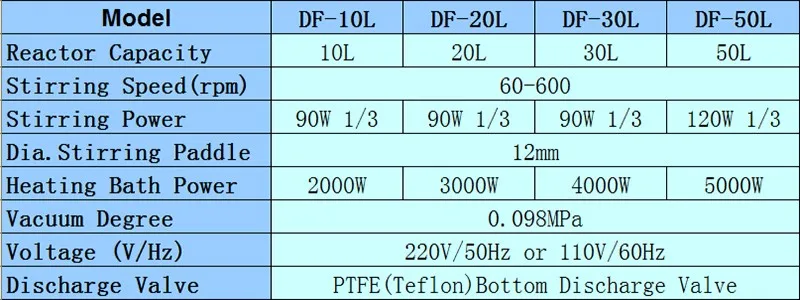

Technical Data




Main Features

1. All glassware is from First-class high-borosilicate glass that is heat/cold/corrosion-resistant,owns excellent chemical and physical performance.


2. Overall Stainless steel (SS304)frame and screw with strong support and hardness .

3. Can be used in wide temperature range from high temperature (200°C)to low temperature(-80°C).

4. Imported high torque reinforcement electrical machine, frequency conversion constant temperature stirring system, stable working state.

5. Corrosion resistant discharge valve is without dead space design. solids / liquid material can be easily released from below.

6. Easily visual operation with digital speed and temperature displays.

7. Flange is used to fix stirring rod and also protect big glass mouth without crash .

8. Distillation and reflux can be carried out at the same time.

9. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L .

10. Overall structure is beautiful, easy to operate.



Detailed Images
Product Series
Our Company
Packing & Delivery
FAQ

1. Are you manufacturer or trading company?
We are professional manufacturer of lab instruments with a history of10 years.

2. How to choose suitable equipment ?
You tell us your requirements (For example: capacity, temperature range, pressure,
etc ), we will recommend you the best suitable equipment.

3. What's the size do you have?
We can offer you 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 100L,150L.200L

4. How many kinds of your glass reactor?
Three types: Single lined , Double lined ,Triple lined Explosion proof is available

5. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the
PTFE stirring bar can withstand about 200 degree centigrade

6. What's the heating mode of single layer glass reactor?
oil/water bath heating, and heating mantle.

7. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you
demand.

8. What's the minimum order quantity?
One set

9. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be
discussed during the deal.

10. How will you delivery these goods? What is the delivery time ?
By Air, By Courier or Express (DHL,UPS,FEDEX and TNT ), By Sea .Goods will be sent within 7-
10days after receiving your payment

11. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
