Genel Bakış
Hızlı Detaylar
- Max. Salıncak Çapı (mm):
-
160 mm
- Max. Iş Parçası Uzunluğu (mm):
-
1500 mm
- Menşe Yeri:
-
Shandong, China
- Durumda:
-
Yeni
- Max. Döndü Uzunluğu (mm):
-
1500 mm
- Video giden-muayene:
-
Sağlanan
- Makineleri Test raporu:
-
Sağlanan
- Pazarlama tipi:
-
Yeni ürün 2020
- Çekirdek bileşenleri garanti:
-
1 yıl
- Çekirdek bileşenleri:
-
PLC, Motor
- Marka adı:
-
TianJiao
- Gerilim:
-
380V/50HZ
- Boyut (L * W * H):
-
300*100*160cm
- Ağırlık (KG):
-
1650
- Güç (kW):
-
4.5 - 5.5
- Sertifikasyon:
-
CE
- Garanti:
-
1 yıl
- Satış sonrası hizmet sağlanan:
-
Ücretsiz yedek parça
- Anahtar Satış Noktaları:
-
Enerji tasarrufu
- Sonra garanti hizmeti:
-
Video teknik destek, Online destek
- Uygulanabilir Endüstriler:
-
Makineleri Tamir Atölyeleri, Üretim Tesisi, Ev Kullanımı, Perakende, Inşaat çalışır
- Yerel hizmet konumu:
-
Bae
- Showroom konumu:
-
Bae
- Product name:
-
CNC Router Engraver Drilling and Milling Machine Pneumatic Engraver
- Keywords:
-
turning,engraving and slot-broaching lathe machine
- Usage:
-
woodturning,slotbroaching and engraving
- Max turning length:
-
1500mm
- Max turning diameter:
-
300mm
- Spindle Speed:
-
0-3000rpm
- Color:
-
Customise
- Structure:
-
Heavy Cast Iron Lathe Bed
- Transmission:
-
Taiwan TBI Ball Screw Transmission
- Driver:
-
Yako Driver
Tedarik Gücü
- Tedarik Gücü:
- 100 Set/Sets per Month
Paketleme & Kargo
- Paketleme Detayları
- dış: Su Geçirmez membran ahşap durumda
İç: tahta sandık
- Liman
- qingdao port
- Örnek Resim:
-
- Tedarik Süresi: :
-
Miktar(Sets) 1 - 5 6 - 10 >10 Tahmini Süre (gün) 15 30 Belirlenecek
Product Description

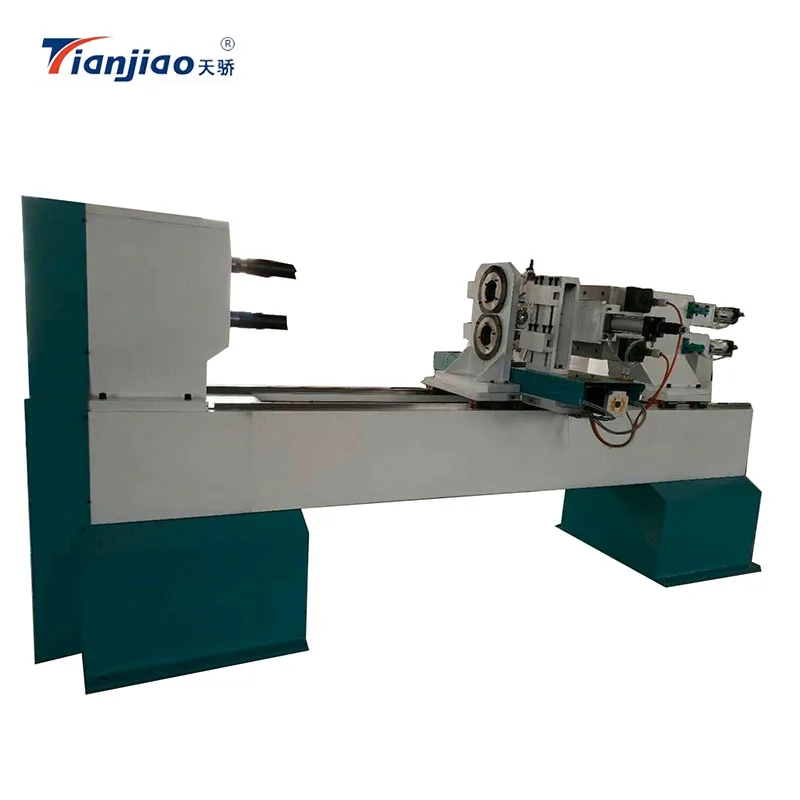

China Best Wood Copy Wood-turning Lathes For Sale From China Supplier Tianjiao CNC
Function
This machine can be used to produce regular and irregular staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs; sofa legs; bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats, bowl, vase and so on.
It sets turning, slot-broaching, engraving in one, and automatic tool change, so it is more to use.
Specification
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 2500kgs to make sure the lathe body stabilized and never deformed.
2. Special used for wood turning and wooden cylinder engraving, for irregular table legs, stair railing (banisters), etc.
3.Adopting advanced Tianjiao Control system which is easy for operating even without a computer
4. Adopt Taiwan TBI ball screw and HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software
6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7. One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed.

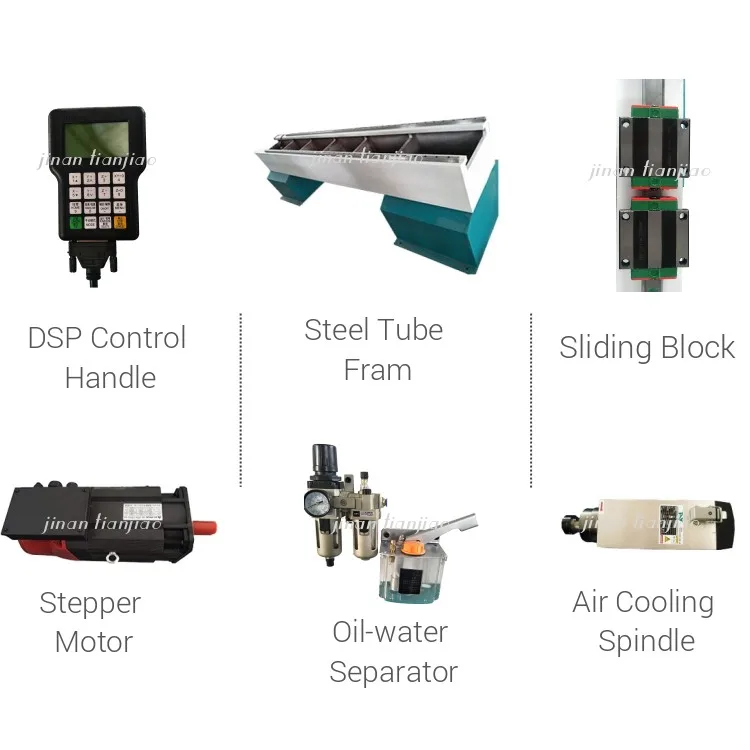

Configuration
Terms | Specification | ||||
Max turning length | 100mm-1500mm | ||||
Max turning diameter | 20mm-160mm | ||||
Number of axis | dhouble axises,double blades | ||||
Maximum feed rate | 200cm/min | ||||
Minimum setting unit | 0.01cm | ||||
Max spindle speed | 0-3000r/min | ||||
Power supply | AC380v/50hZ | ||||
Air pressure | 0.6-0.8Mpa | ||||
Machine size | 300*100*160cm | ||||
Weight | 1570kgs | ||||
Spindle motor power | 4kw | ||||
Spindle power | 3.5kw air cooling spindle | ||||
Software | CAD | ||||
Fix clamp | two | ||||

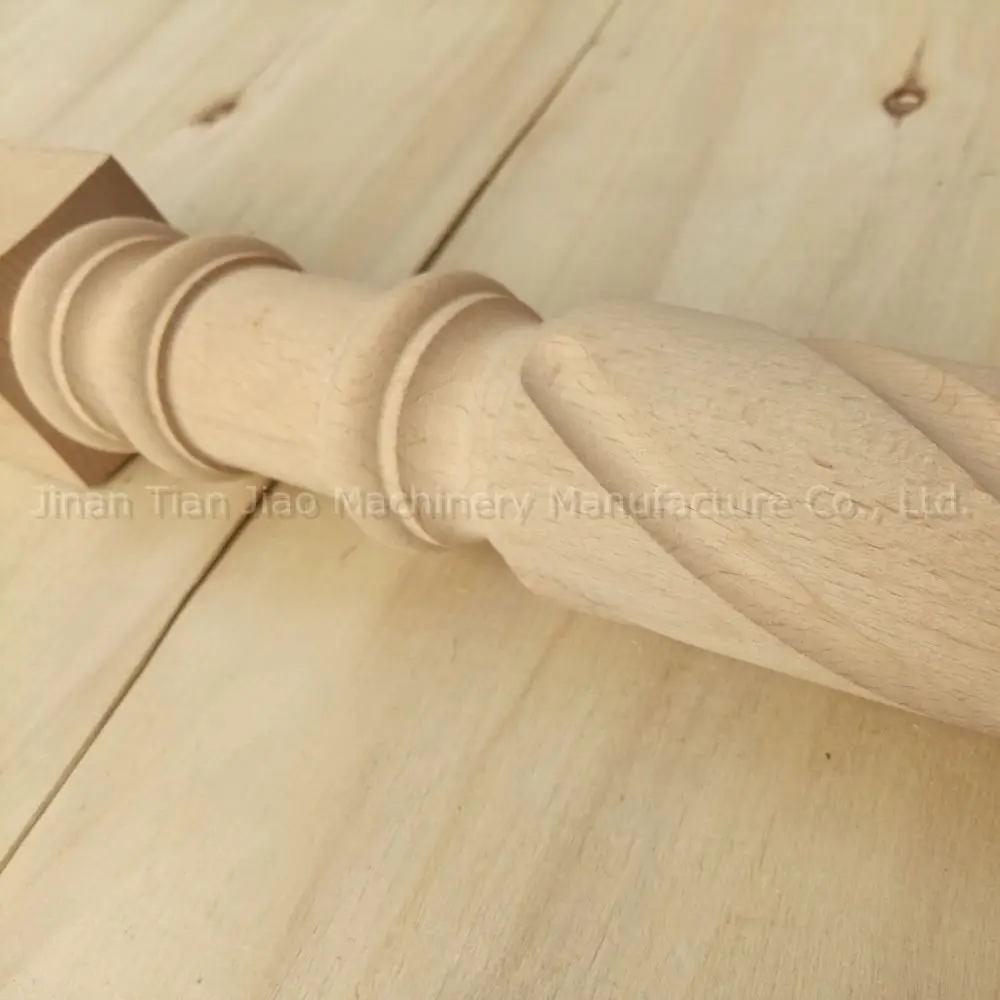

Sample
Sofa, Table, staircase Log Baseball bat
Engraving
Our Company
JiNan TianJiao Machinery Manufacture Co.,Ltd specilize in developing and manufacure Mechanical CNC routers,CNC laser machine, plasma cutting machine,cutting ploter and other machines.We provide high quality cnc equipment to global market. We are a leading company in this field, being confident in offering the best service and the bestquality.
With many years hard work ad perfect management, we have classified our product in several catrgories: woodworking machine, advertising machine, ATC machine, ston working machine,plasma cutting machine, laser machine and plotter. We can also customize product and offer OEM service. Our product have been exported tomany overseas coutries and gaining good coments.
We hope to be your good, long-term and honest partner. Whish you can get joy and satisfaction from our product and service.
FACTORY SHOW
PACKAGING & SHIPPING
Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping,then fastened on the stronger iron steel tube pallet with wooden box for sea shipment.
Inside Packing
· Use professional Stretch Film to cover the whole lathe.
· Stretch film package with foam protection in each corner.
Outside Packing
· Sandard export wooden cases and pylwood cases.
· Save space as much as possible for container loading.
Transport
· We support shipping, air, land and express.
Packaging details
outside package : standard marine export plywood caseInner package: stretch film and plastic film for humidity
PS: We can also make package according to your requests.
OUR ADVANTAGES
Tianjiao · Oman overseas warehouse
On March 19, 2020, the "Tianjiao · Oman overseas warehouse" established by jinan tianjiao company in Oman was officially put into
operation.Tianjiao company, Oman China wholesale city company together for the "Tianjiao · Oman overseas warehouse".
operation.Tianjiao company, Oman China wholesale city company together for the "Tianjiao · Oman overseas warehouse".

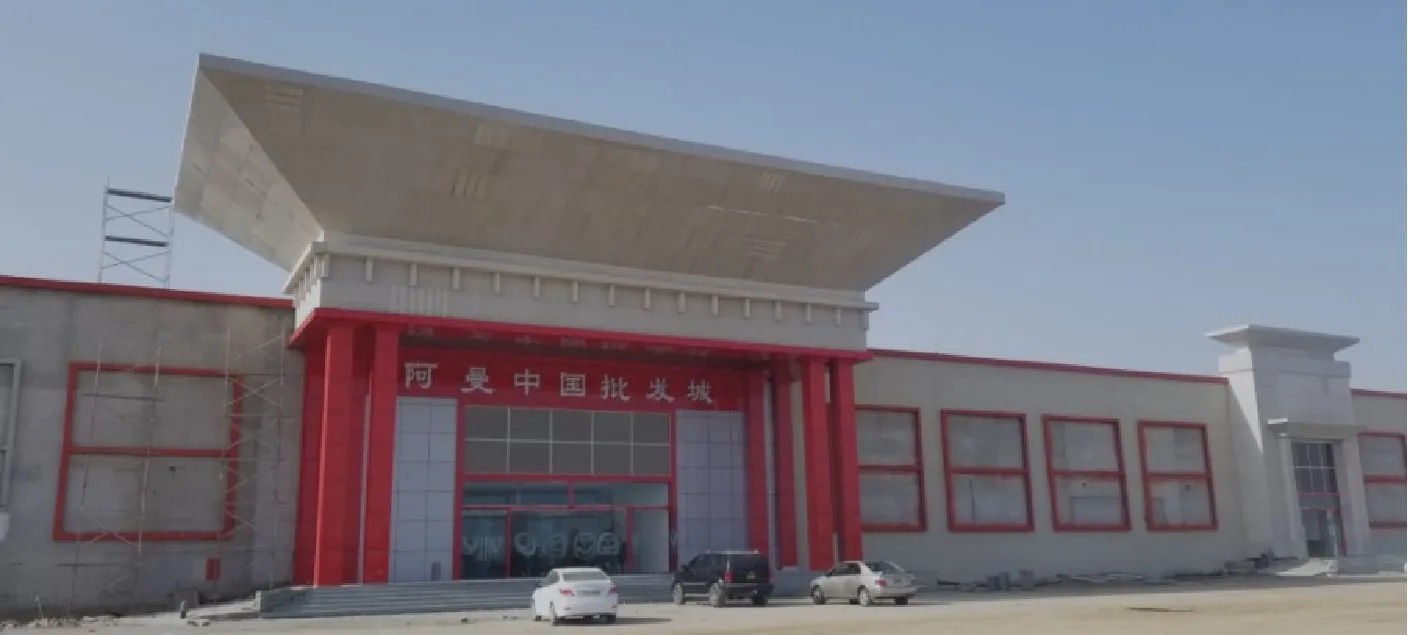

Oman Chinese wholesale city appearance
"Tianjiao · Oman overseas warehouse" warehouse appearance

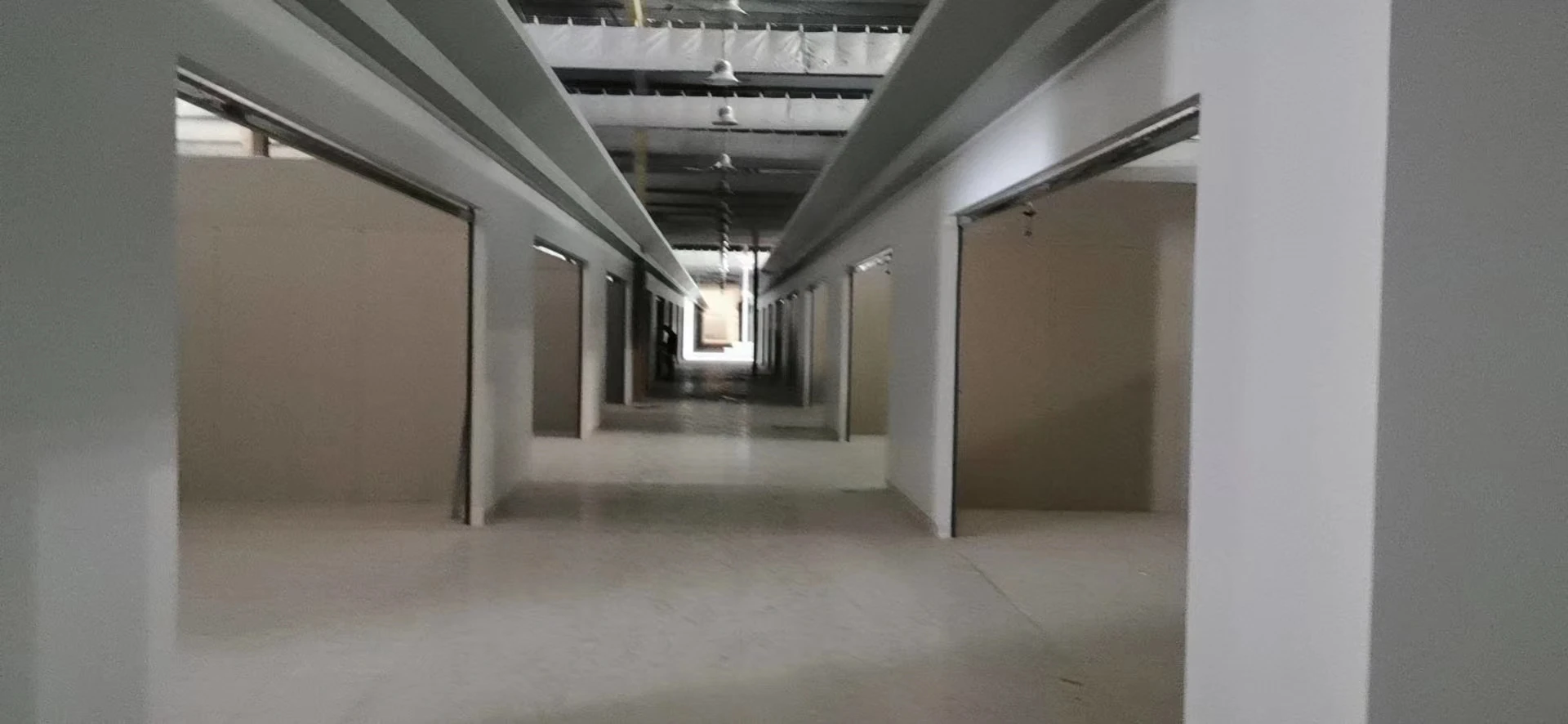

"Tianjiao · Oman overseas warehouse" part of the warehouse
What is "overseas warehouse"?
"Overseas warehouse" refers to the establishment in a foreign country
Cross-border trade warehouse with integrated logistics service platform
Provides the domestic warehouse to receive the hair the operation, the international section transportation
Warehouse destination country customs clearance, storage, distribution and value-added services
Tianjiao · Oman overseas warehouse "advantage
Tianjiao · Oman overseas warehouse "successfully landed
It fills the gap of "overseas end" logistics fulcrum platform of the company
FAQ
Q1:How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2:What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q3:This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q4:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents
