Sıhhi/Musluk/Banyo Armatürleri PVD Tin Crn Tialn Kaplama Makinesi/Vakum Kaplama Ünitesi

FOB Referans Fiyat:En Yeni Fiyatı Alın
$80.000,00 - $150.000,00 / Takımları | 1 Takımları (Min. Sipariş)
Model Numarası:
rapor Şüpheli Etkinlik
Genel Bakış
Hızlı Detaylar
Uygulanabilir Endüstriler:
Üretim Tesisi
Durumda:
Yeni
Tür:
Kaplama üretim hattı
Substrat:
Çelik
Kaplama:
Vakum kaplama
Menşe Yeri:
Guangdong, China (Mainland)
Marka adı:
HCVAC
Gerilim:
380 V
Güç (W):
40kw
Boyut (L * W * H):
Sıhhi pvd kaplama makinesi
Ağırlık:
Sıhhi pvd kaplama makinesi
Sertifikasyon:
Sıhhi pvd kaplama makinesi
Garanti:
1 yıl
Satış sonrası hizmet sağlanan:
Alan kurulum, devreye alma ve eğitim, Online destek
Satış sonrası servis sağlandı:
Yurtdışı hizmet makineleri için mevcut mühendisler
Tipi:
Sıhhi pvd kaplama makinesi
Dimension1:
1250*1100mm
Dimension2:
1100*1000mm
Kaplama filmi:
TiN, TiC, TiCN, TiAlN, CrN, Cu, Au vb.
Kaplama renk:
Gümüş, altın, siyah, gül altın, pembe, bronz, kahve
Kaplama malzemesi:
Paslanmaz çelik, metal alaşımlı, seramik, cam vb.
Teknolojisi:
Magnetron püskürtme + çok ark iyon kaplama
Kontrol modu:
Otomatik PLC dokunmatik ekran kontrolü
Marka:
HCVAC, Dongguan, çin
Tedarik Gücü
Tedarik Gücü:
200 Set/Sets per Year sanitary pvd coating machine
Paketleme & Kargo
Paketleme Detayları
Sıhhi pvd kaplama makinesi için 20ft veya 40 ft konteyner
Liman
Shenzhen

Sanitary/Faucet/Bathroom Fittings PVD Tin Crn Tialn Coating Machine/Vacuum Coating Unit

Product Description


 BRIEF INTRODUCTION

The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.



It is equipped with the new target and the arc power supply, arc spot is stable. It is not easy running arc, the current is low and ionparticles is small. Applied to metal, ceramics, glass and other materials of the surface coating of hard metal film and metal compounds film. Pumping speed faster, vacuum stability, and superior quality film, widely used in hardware,watches, glasses, tools, dies, metal, glass, ceramics, building materials, and other surface treatment industry.

 FEATURES

HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome.  They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.



The coatings provide improved properties such as hardness, wear-resisitance, corrosion-resistance, and fracture/fatigue performance without unwanted changes in component bulk properties.  This advanced technology coating process replicates the original surface finish, eliminates re-polishing after coating, and will not chip or flake off.





 -High reliability



-High productivity and flexibility



-Consistently brilliant end product quality



-Full automation capability



-Excellent coating flexibility



-Long lifetime and fast target exchange



-Flexible system configuration



-High speed coating and best PVD homogeneity

  TECHNICAL DATA



ModeLH-1215LH-1618LH-2121
DimensionD1250*H1500mmD1600*H1800mmD2100*H2100m
Coating mode and
main confirguration
Twelve arc targetsEighteen arc targetsTwenty two arc targets
Power sourceElectric-arc power, Filament power,  Pulsed bias power supply
Process gas controlMass flowmeter + Electromagnetic ceramic valve
Vacuum chamber
structure
Vertical side opening door, pump system postposition, double water cooling
Vacuum systemDiffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer’s special technique requirement.

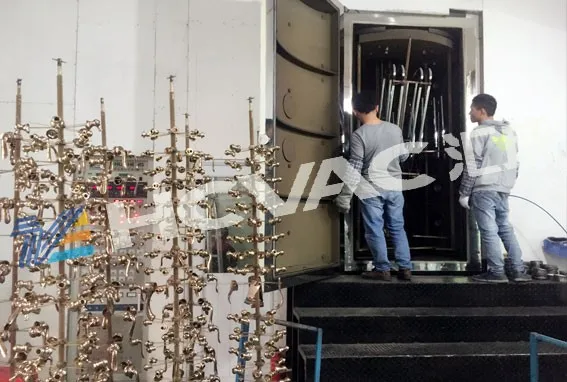

  MACHINE PHOTOS

  SAMPLE PHOTOS






Company Information
  ABOUT HUICHENG
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

Easy to implement

  To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.

Certifications
  HUICHENG HONOR

Successful Case
  PHOTO WITH CLIENTS & SUCCESSFUL CASE

We developed a complete after-sales system and effective service measures. Company now
owns a professional after-sales service team with more than ten experienced engineers.



ISO 9001 standard to ensure the quality can meet the customer’s requirements.

Please feel free to contact us for further information!





Contact: Lillian Yang



Mobile: 0086-13825720037 (WhatsApp,wechat)



Skype: lillianyoung



Email: lillian(at)hcvac.com
