Fiziksel Buhar Biriktirme Vakum Yüzey Metalize Makinesi

FOB Referans Fiyat:En Yeni Fiyatı Alın
$40.000,00 - $300.000,00 / Takımları | 1 Takımları (Min. Sipariş)
Model Numarası:
rapor Şüpheli Etkinlik
Genel Bakış
Hızlı Detaylar
Uygulanabilir Endüstriler:
Üretim Tesisi
Durumda:
Yeni
Tür:
Kaplama üretim hattı
Substrat:
Plastik
Kaplama:
Vakum kaplama
Menşe Yeri:
Guangdong, China
Marka adı:
HCVAC
Gerilim:
380 v veya özelleştirilmiş
Güç (W):
30kw
Boyut (L * W * H):
Fiziksel Buhar Biriktirme Makinesi
Ağırlık:
Fiziksel Buhar Biriktirme Makinesi
Sertifikasyon:
Tüv, CE, SGS, ISO9001
Garanti:
1 yıl
Satış sonrası hizmet sağlanan:
Ücretsiz yedek parça, Alan kurulum, devreye alma ve eğitim, Alan bakım ve onarım hizmeti, Video teknik destek, Online destek
Satış sonrası servis sağlandı:
Yurtdışı hizmet makineleri için mevcut mühendisler
Ürün:
Fiziksel Buhar Biriktirme Makinesi
Iş tipi:
Çin üretici/tedarikçi
Teknolojisi:
Buharlaşma kaplama
Yapı 1:
Dikey, çift kapılar
Yapısı 2:
Yatay, tek kapı
Kontrol sistemi:
Manuel, otomatik all-in-one
Işletim sistemi:
PLC dokunmatik ekran
Oda malzemesi:
Paslanmaz çelik veya karbon çelik
Kaplama filmi:
Alüminyum veya diğerleri
Tedarik Gücü
Tedarik Gücü:
200 Set/Sets per Year Physical Vapor Deposition Machine
Paketleme & Kargo
Paketleme Detayları
Ahşap paket
Liman
SHENZHEN



Product Description
  DETAILED DESCRIPTION
 The machine use Vacuum metallizing technology match with Painting line to get all kinds of color metallic finishing on Products.We can do Turnkey Project for customers including Vacuum PVD coating, UV Automatic Painting line.

 Technology
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates,  to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Thermal Resistance Evaporation Coating Technology:  Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material.
 Features

Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.



 Application

Applied industry: Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon,metal, Boli, glass, ceramics, TPU, etc.

Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing,raindrop ect.

Coating color: gold, silver, red, blue, green, purple,rainbow color ect.

  TECHNICAL DATA
ModeZZ-1214ZZ-1416ZZ-1618ZZ-1820
Dimension (D*H)1200*1400mm1400*1600mm1600*1800mm1800*2000mm
Film typeSemitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc
Power sourceThermal evaporation power, ion bombard power, RF power
Vacuum chamber structureVertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum8.0*10-4Pa
Vacuum systemDiffusion pump +Roots pump +Mechanical pump +Holding pump
Pump timePump from atmosphere to 5.0*10-2,<=6 minutes
Workpiece motion modePublic rotation/ Frequency control
Control modeManual/Automatic all in one mode, Touch screen + PLC
RemarkWe can design the dimension of the equipment according to customer’s special technique requirement.



Turn-key project could be offered
Main process: Base coat---UV tunnel--- vacuum coating---top coat----UV tunnel
Coating color: Gold, silver, red, blue, green, purple, multi color, and so on. (Whatever color you want, you could spray the top oil to make colorful)
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
  MACHINE PHOTOS
Vacuum metallizing machine,vertical double door:

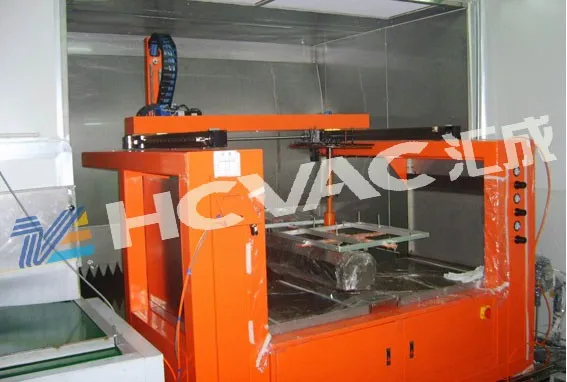

Auto painting system:

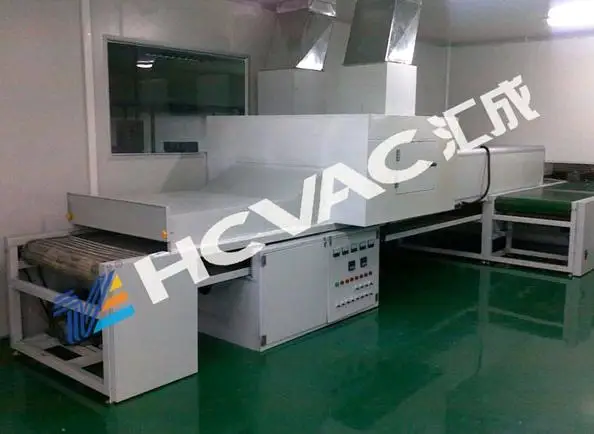

UV curing line:
  SAMPLE PHOTOS






Company Information
  ABOUT HUICHENG
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.


Our Services



1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.

2.Quality control,high technology productivity to make sure the good quality machine production.

3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we  will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.

Certifications
  HUICHENG HONOR

Successful Case
  PHOTO WITH CLIENTS & SUCCESSFUL CASE

More information about our vacuum coating machine,pls do not hesitate to contact:

Contact person:Mandy Liu

Phone No./whatsapp/wechat:+8613825755941

Skype:liuyingyu7

Email:mandy(at)hcvac.
